- DWB64BC51B
- DWB64BC51B stainless steel

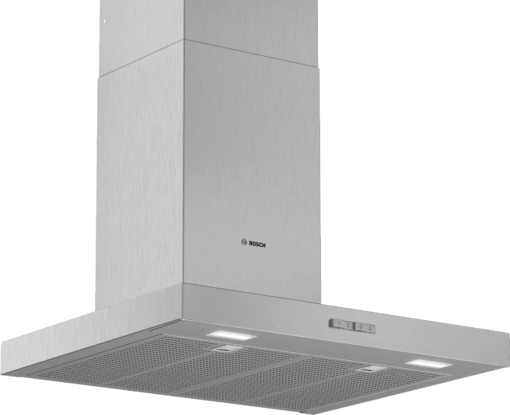

- Chimney hood, 60 cm
- Box common design – stainless steel
- Energy Efficiency Class: D*
- Average Energy Consumption: 53.1 kWh/year*
- Blower Efficiency Class: E*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Noise min./max. Normal Level: 48/63 dB*
Measures:
- Chimney hood
- stainless steel
- 600 mm wide
- Suitable for ducted or re-circulated extraction
- Recirc. kit or clean air kit
- Wall mounted hood
- push buttons for extractor speeds and light
- 3 speeds via push buttons
- 3 speeds control
- Twin channel high performance fan motor
- Light Intensity: 99 lux
- Colour Temperature: 3500 K
- Metal grease filter, dishwasher safe
- Ducted extraction rate according to DIN/EN 61591max. 365 m³/h
- Maximum extraction rate exhaust air 365 m³/h according to EN 61591
- Noise level according to EN 60704-3 und EN 60704-2-13 at max. normal use exhaust air: 63 dB(A) re 1 pW (50 dB(A) re 20 µPa sound pressure)
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 635-965 x 600 x 500 mm
- Dimensions recirculating (HxWxD): 635-1075 x 600 x 500 mm
- Dimensions recirculating with cleanAir module (HxWxD);
703 x 600 x 500 mm – mounting with outer chimney
833-1163 x 600 x 500 mm – mounting with telescopic chimney - Power rating: 100 W
- Electrical cable lenght 1.3 m
Additional information
General
| Type of appliance width (cm) | 60 cm |
|---|---|
| Depth of the product | 500 mm |
| Construction type | Built-in |
| Operating Mode | Convertible |
| Maximum output recirculating air (m3/h) | 196 m³/h |
| Sound pressure max. normal | 50 dB (A) |
Construction type
| Diameter of air outlet (mm) | 120 / 150 mm |
|---|---|
| Color body | Stainless steel |
| Grease filter material | Washable stainless steel |
| Grease filter type | Multilayer cassette |
| Installation typology | Wall-mounted |
| Material body | Stainless steel |
| Material chimney | Stainless steel |
| Motor location | Integrated motor in hood chimney |
| Number of motors | 1 |
| Operating Mode | Convertible |
| Typology | Chimney |
