- LED Digital Display
- 2 Style Installation, Ceiling/ Floor
- Wide Range of Air Flow
- Refrigerant Leakage Detect
- 3 Year Compressor Warranty
PRODUCT DETAILS
-
- Ton
-
3 Ton
-
- Brand
-
ECO+
HIGHLIGHTS
-
- Model No
-

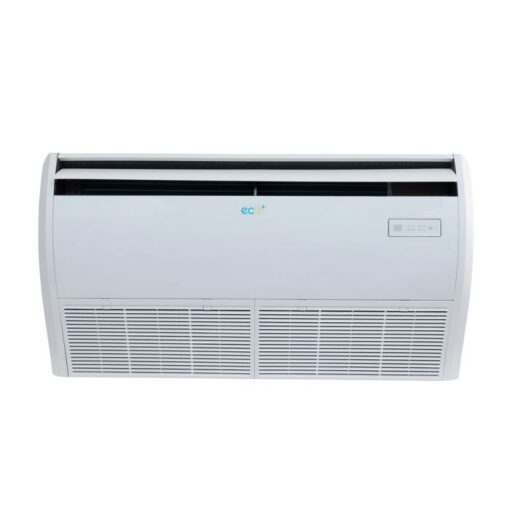

Eco+ CVT-36ZH
-
- Type
-
Ceiling Suspended
INDOOR UNIT
-
- Cooling Capacity (Btu/h)
-
36000
-
- Cooling Capacity (W)
-
10550
-
- Indoor Unit Power supply (V//Hz/Ph)
-
220-240V~/50Hz/1P
-
- Power Input (W)
-
3578
-
- Rated Current (A)
-
7.8
-
- EER (W/W)
-
2.95
-
- Fan Motor Capacitor (uF)
-
4.5
-
- Indoor Unit Air Flow (H/M/L) ㎥/h
-
1700/1300/1100
-
- Indoor Unit Noise Level (H/M/L) dB(A)
-
45/43/40
-
- Indoor Unit Dimension (WxHxD) mm
-
1275×675×235
-
- Net Weight (Indoor) kg
-
29
-
- Refrigerant Type
-
R410A
-
- Refrigerant Pipe (Liquid side) (mm)
-
9.52
-
- Refrigerant Pipe (Gas side) (mm)
-
Ф19.05
-
- Drainage water pipe diameter (mm)
-
Ф 25(OD)
-
- Operation Control
-
Remote controller
OUTDOOR UNIT
-
- Outdoor Unit Power Supply (V//Hz/Ph)
-
380-415V~/50Hz/3P
-
- Max. Input Consumption (W)
-
6100
-
- Max. current (A)
-
11.5
-
- Starting current (A)
-
66
-
- Compressor Brand
-
Landa
-
- Compressor Type
-
Rotary
-
- Air flow (m3/h)
-
4900
-
- Outdoor Unit Noise Level dB(A)
-
58
-
- Outdoor Unit Dimension (WxHxD) mm
-
900×805×360
-
- Net Weight (Outdoor) kg
-
79
-
- Refrigerant
-
R410A
-
- Refrigerant Charge (g)
-
2100
-
- Refrigerant Pipe (Liquid side) mm
-
9.52
-
- Refrigerant Pipe (Gas side) mm
-
19.05
-
- Max. refrigerant pipe length (m)
-
30
-
- Refrigerant pipe Max. difference in level
-
20
WARRANTY
-
- Compressor (Yrs)
-
3 Years
-
- Parts (Yrs)
-
1 year
